What sizes are available for Brass Dome Plug PG Thread?

Brass dome plugs with PG threads are essential components in various industrial applications, especially in electrical installations where cable entry and protection are crucial. As a reliable supplier of brass dome plugs with PG threads, we understand the importance of offering a wide range of sizes to meet the diverse needs of our customers. In this blog post, we will explore the available sizes of brass dome plugs with PG threads, their applications, and why choosing the right size is vital.

Understanding PG Threads

Before delving into the available sizes, it's important to understand what PG threads are. PG, which stands for "Panzergewinde," is a German standard for cable gland threads. These threads are widely used in Europe and other parts of the world for cable management and protection. PG threads are known for their reliability, durability, and ability to provide a secure seal against dust, water, and other contaminants.

Available Sizes of Brass Dome Plug PG Thread

We offer a comprehensive range of sizes for brass dome plugs with PG threads to accommodate different cable diameters and installation requirements. Our available sizes typically range from PG7 to PG48, with each size designed to fit specific cable diameters. Here is a detailed breakdown of the common sizes and their corresponding cable diameters:

• PG7: This is one of the smallest sizes available, suitable for cables with diameters ranging from 4mm to 6mm. PG7 brass dome plugs are commonly used in applications where space is limited, such as in small electrical enclosures or control panels.
• PG9: With a slightly larger thread size, PG9 brass dome plugs can accommodate cables with diameters between 6mm and 8mm. They are often used in medium-sized electrical installations, such as in industrial machinery or telecommunications equipment.
• PG11: PG11 is a popular size that can fit cables with diameters from 8mm to 10mm. This size is widely used in a variety of applications, including power distribution, automation systems, and lighting fixtures.
• PG13.5: Designed for cables with diameters between 10mm and 12mm, PG13.5 brass dome plugs are commonly used in larger electrical enclosures and outdoor installations. They provide a secure seal and protection against environmental factors.
• PG16: This size can accommodate cables with diameters ranging from 12mm to 14mm. PG16 brass dome plugs are suitable for heavy-duty applications, such as in power generation plants, mining equipment, and marine vessels.
• PG21: With a larger thread size, PG21 brass dome plugs can fit cables with diameters between 14mm and 18mm. They are often used in high-power electrical installations and industrial automation systems.
• PG29: PG29 is a substantial size that can accommodate cables with diameters from 18mm to 22mm. This size is commonly used in large electrical enclosures, switchgear, and control cabinets.
• PG36: Designed for cables with diameters between 22mm and 26mm, PG36 brass dome plugs are suitable for heavy-duty applications in the oil and gas industry, as well as in large-scale power distribution systems.
• PG48: This is the largest size available in our range, capable of fitting cables with diameters from 26mm to 32mm. PG48 brass dome plugs are used in extreme applications where large cables need to be sealed and protected.

Applications of Brass Dome Plug PG Thread

Brass dome plugs with PG threads are used in a wide range of industries and applications due to their versatility and reliability. Some of the common applications include:

• Electrical Installations: Brass dome plugs with PG threads are widely used in electrical enclosures, control panels, and switchgear to provide a secure seal for cables. They help prevent dust, water, and other contaminants from entering the enclosure, protecting the electrical components from damage.
• Industrial Machinery: In industrial settings, these plugs are used in machinery and equipment to ensure proper cable management and protection. They help maintain the integrity of the electrical connections and prevent downtime due to cable failures.
• Telecommunications: Telecommunications equipment often requires reliable cable entry and protection. Brass dome plugs with PG threads are used in telephone exchanges, data centers, and communication towers to seal cables and prevent interference.
• Automotive Industry: In the automotive industry, these plugs are used in electrical systems to protect cables from moisture, dirt, and vibrations. They help ensure the proper functioning of electrical components in vehicles.
• Marine and Offshore Applications: Brass dome plugs with PG threads are suitable for marine and offshore environments, where they are exposed to harsh conditions such as saltwater, high humidity, and extreme temperatures. They provide a reliable seal and protection for cables in ships, oil rigs, and offshore platforms.

Why Choosing the Right Size is Important

Choosing the right size of brass dome plug with PG thread is crucial for ensuring proper cable management and protection. Here are some reasons why:

• Proper Seal: A correctly sized plug will provide a tight and secure seal around the cable, preventing the entry of dust, water, and other contaminants. This helps protect the electrical components from damage and ensures the longevity of the installation.
• Cable Protection: The right size plug will fit the cable snugly, preventing it from being damaged during installation or operation. It also helps reduce stress on the cable, minimizing the risk of cable failure.
• Compliance with Standards: Many industries have specific standards and regulations regarding cable management and protection. Choosing the right size plug ensures compliance with these standards, avoiding potential legal issues and safety hazards.
• Optimal Performance: Using the correct size plug will ensure optimal performance of the electrical system. It helps maintain the integrity of the electrical connections and reduces the risk of signal interference or power loss.

Other Thread Options

In addition to PG threads, we also offer brass dome plugs with other thread types to meet the diverse needs of our customers. Some of the other thread options include:

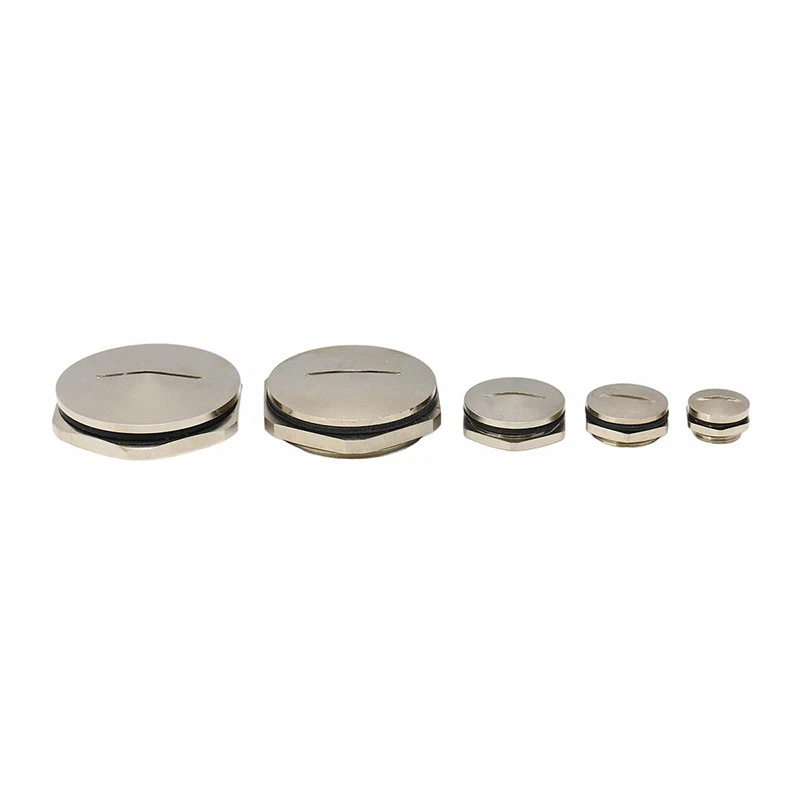

• Brass Dome Plug Metric Thread: Metric threads are commonly used in many countries around the world. Our brass dome plugs with metric threads are available in a variety of sizes to fit different cable diameters.

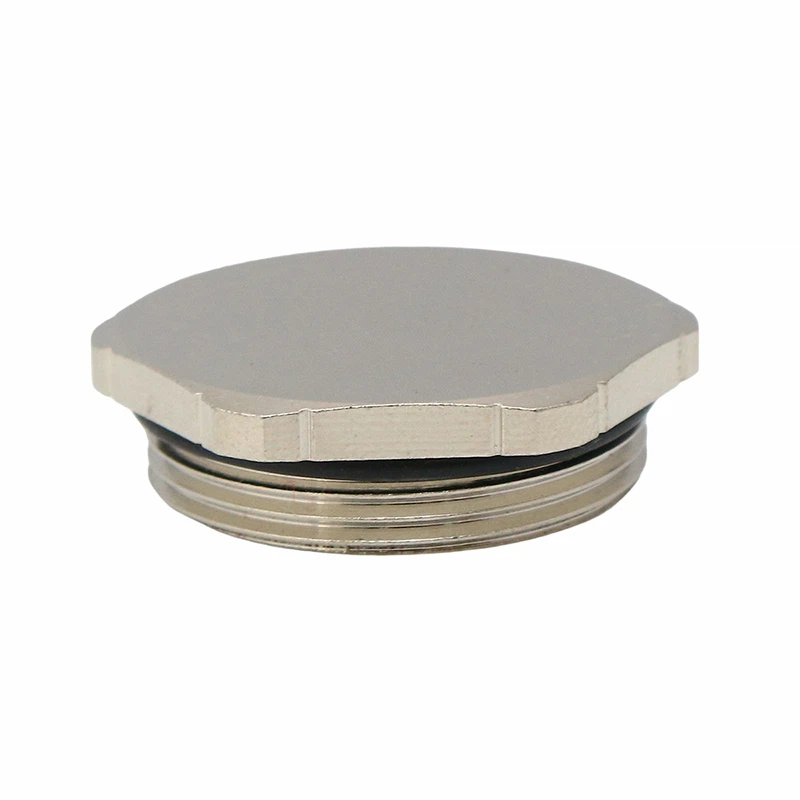

• Brass Dome Plug G Thread: G threads, also known as BSP (British Standard Pipe) threads, are widely used in the United Kingdom and other countries. We offer brass dome plugs with G threads in various sizes for different applications.
• Brass Dome Plug NPT Thread: NPT (National Pipe Thread) is a standard thread type used in the United States and other countries. Our brass dome plugs with NPT threads are suitable for applications where a secure and leak-proof connection is required.

Contact Us for Your Brass Dome Plug Needs

If you are in need of brass dome plugs with PG threads or any other thread types, we are here to help. As a leading supplier of high-quality brass dome plugs, we offer a wide range of sizes and thread options to meet your specific requirements. Our products are manufactured to the highest standards and undergo rigorous quality control to ensure reliability and performance.

Whether you are working on a small electrical project or a large industrial installation, we can provide you with the right brass dome plug for your needs. Contact us today to discuss your requirements and get a quote. Our experienced team of professionals will be happy to assist you and help you find the perfect solution for your cable management and protection needs.

References

• "Cable Gland Handbook," published by a leading industry association.
• Technical specifications provided by the manufacturers of brass dome plugs.
