What is the ingress protection rating of EMC Gland PG Thread?

What is the ingress protection rating of EMC Gland PG Thread

As an EMC Gland PG Thread supplier, I understand the crucial role these products play in various industries. In this blog, I aim to delve into the concept of Ingress Protection (IP) ratings for EMC Gland PG Threads, shedding light on their significance and implications for end - users.

Understanding EMC Gland PG Thread

EMC (Electromagnetic Compatibility) Gland PG Threads are essential components used in electrical and electronic installations. They serve multiple purposes, such as cable entry, strain relief, and electromagnetic shielding. The PG (Panzergewinde) thread is a standardized threading system commonly used in Europe for cable glands. It provides a reliable and secure connection between the cable and the equipment enclosure.

The main advantage of EMC Gland PG Threads is their ability to effectively manage electromagnetic interference (EMI). By grounding the cable shield and providing a continuous conductive path, these glands prevent EMI from radiating into the surrounding environment or affecting the operation of sensitive electronic devices. Additionally, they also protect the cables from physical damage, moisture, and dust, ensuring the longevity and reliability of the entire electrical system.

What is Ingress Protection Rating?

The Ingress Protection rating, or IP rating, is an international standard established by the International Electrotechnical Commission (IEC). It is used to classify the degree of protection provided by an enclosure against the intrusion of solid objects (including dust) and water. The IP rating consists of two digits. The first digit indicates the level of protection against solid objects, while the second digit represents the protection against water.

The first digit ranges from 0 - 6:

• 0: No protection against solid objects.
• 1: Protection against solid objects larger than 50mm (e.g., a hand).
• 2: Protection against solid objects larger than 12mm (e.g., a finger).
• 3: Protection against solid objects larger than 2.5mm (e.g., a tool).
• 4: Protection against solid objects larger than 1mm (e.g., a wire).
• 5: Dust - protected. Limited ingress of dust is permitted, but it should not affect the operation of the equipment.
• 6: Dust - tight. No dust ingress is allowed.

The second digit ranges from 0 - 9:

• 0: No protection against water.
• 1: Protection against vertically falling water drops (e.g., condensation).
• 2: Protection against direct sprays of water up to 15° from the vertical.
• 3: Protection against direct sprays of water up to 60° from the vertical.
• 4: Protection against splashing water from any direction.
• 5: Protection against water jets from any direction.
• 6: Protection against powerful water jets or heavy seas.
• 7: Protection against temporary submersion in water.
• 8: Protection against continuous submersion in water under specified conditions.
• 9: Protection against high - pressure, high - temperature water jets, typically used in industrial cleaning applications.

Ingress Protection Rating of EMC Gland PG Thread

The IP rating of EMC Gland PG Threads can vary depending on the specific design, materials used, and the installation method. Generally, most high - quality EMC Gland PG Threads offer an IP rating of at least IP65.

An IP65 rating means that the gland is dust - tight (first digit 6) and protected against water jets from any direction (second digit 5). This level of protection is suitable for a wide range of indoor and outdoor applications, including industrial automation, telecommunications, and power distribution. In industrial settings, these glands can withstand the harsh environment filled with dust and water splashes, ensuring the integrity of the electrical connections.

Some EMC Gland PG Threads are designed to achieve even higher IP ratings, such as IP66, IP67, or IP68. An IP66 - rated gland provides additional protection against powerful water jets or heavy seas, making it ideal for applications near large bodies of water or in areas prone to heavy rainfall. An IP67 - rated gland can withstand temporary submersion in water, which is useful for applications where the equipment may be exposed to flooding or require cleaning with water. IP68 - rated glands offer the highest level of protection, allowing for continuous submersion in water under specific conditions, which are often required in underwater or offshore applications.

Factors Affecting the IP Rating

Several factors can influence the actual IP rating achieved by an EMC Gland PG Thread:

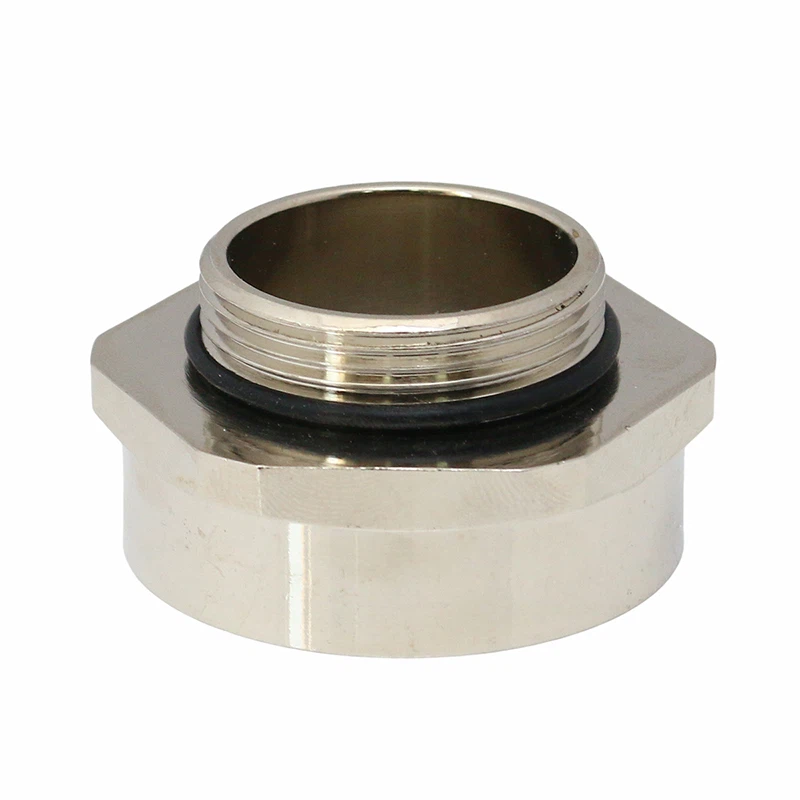

1. Material Quality: The quality of the materials used in the gland construction is crucial. High - grade metals, such as brass or stainless steel, and high - performance elastomers for sealing gaskets can provide better protection against dust and water. For example, Brass Enlager PG Thread made from high - quality brass can offer better corrosion resistance and a more reliable seal.
2. Design and Manufacturing Precision: A well - designed gland with precise manufacturing tolerances will ensure a proper fit between the gland components and the cable, minimizing the gaps through which dust and water can enter. The threading design also plays an important role in achieving a tight seal.
3. Installation Method: Correct installation is essential for achieving the rated IP level. This includes proper tightening of the gland nuts, ensuring that the cable is properly seated in the gland, and using the correct cable diameter for the gland size. Incorrect installation can lead to reduced protection levels.

Importance of IP Rating in the Selection of EMC Gland PG Thread

When selecting an EMC Gland PG Thread, the IP rating is a critical consideration. It directly impacts the reliability and durability of the electrical system. In a dusty environment, a gland with a low dust - protection rating may allow dust to accumulate inside the enclosure, leading to overheating of electrical components or short - circuits. Similarly, in a wet environment, inadequate water protection can cause corrosion of the cables and electrical contacts, resulting in system failures.

For example, in a food processing plant, where the equipment is regularly cleaned with high - pressure water jets, an EMC Gland PG Thread with an IP69K rating would be required to ensure continuous operation and prevent contamination of the food products. On the other hand, in a dry indoor office environment, an IP65 - rated gland may be sufficient.

Related Products

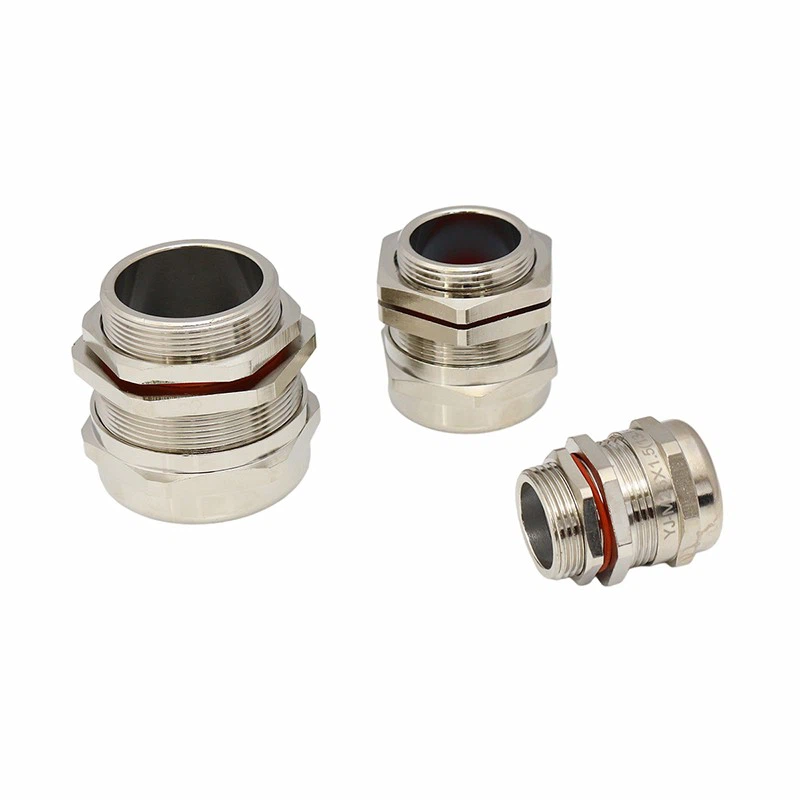

In addition to EMC Gland PG Threads, we also offer other related products, such as Brass Metric To PG Reducer and EMC Gland Metric Thread. These products can be used in combination with EMC Gland PG Threads to meet the specific requirements of different applications. The Brass Metric To PG Reducer allows for the connection of cables with different thread sizes, while the EMC Gland Metric Thread provides an alternative threading option for those who prefer the metric system.

Contact for Purchase and Negotiation

If you have any questions about the ingress protection rating of EMC Gland PG Thread or are interested in purchasing our products, please feel free to reach out. We have a team of experts who can provide you with detailed information and guidance to help you select the most suitable EMC Gland PG Thread for your application. We are committed to providing high - quality products and excellent customer service.

References

• International Electrotechnical Commission (IEC). IEC 60529: Degrees of protection provided by enclosures (IP Code).
• Various manufacturers' technical documents on EMC Gland PG Thread products.
