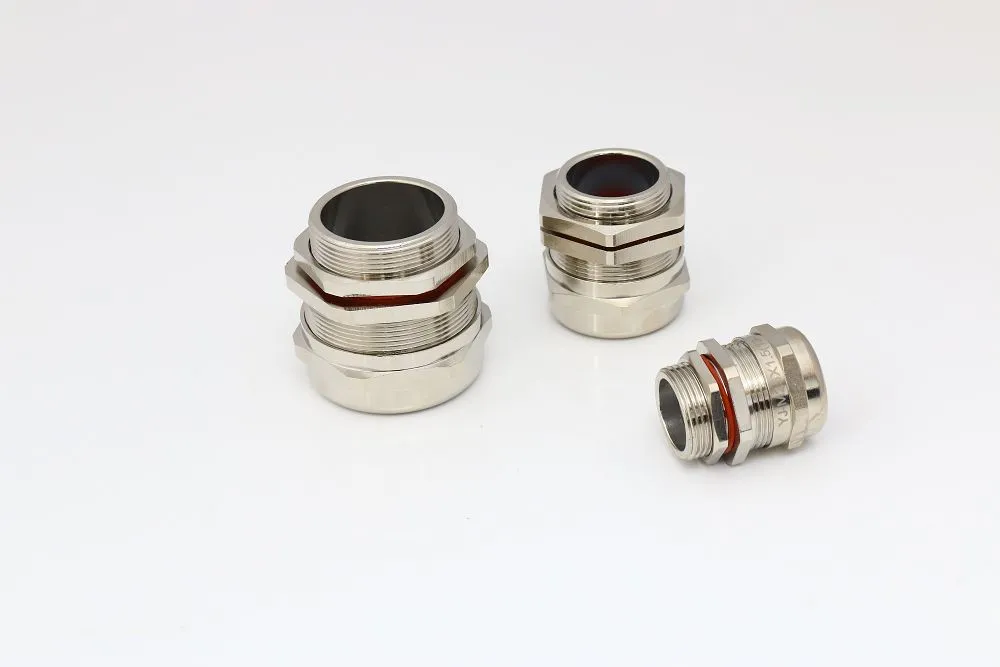

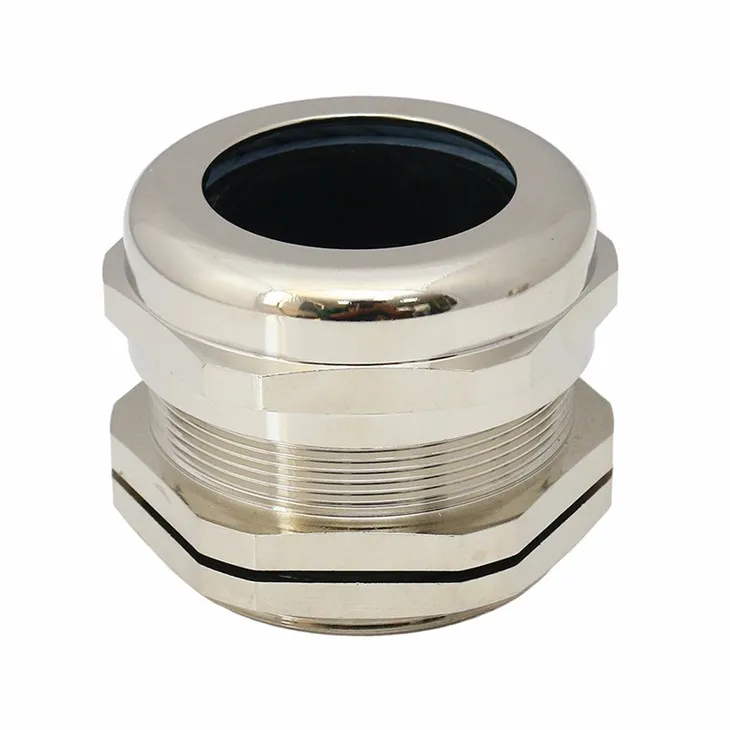

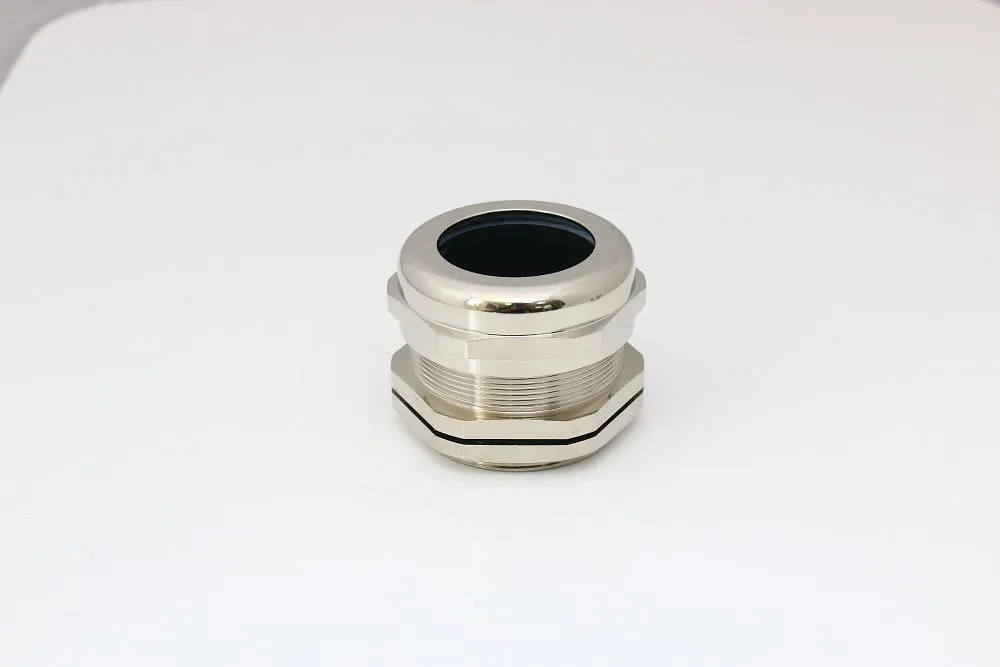

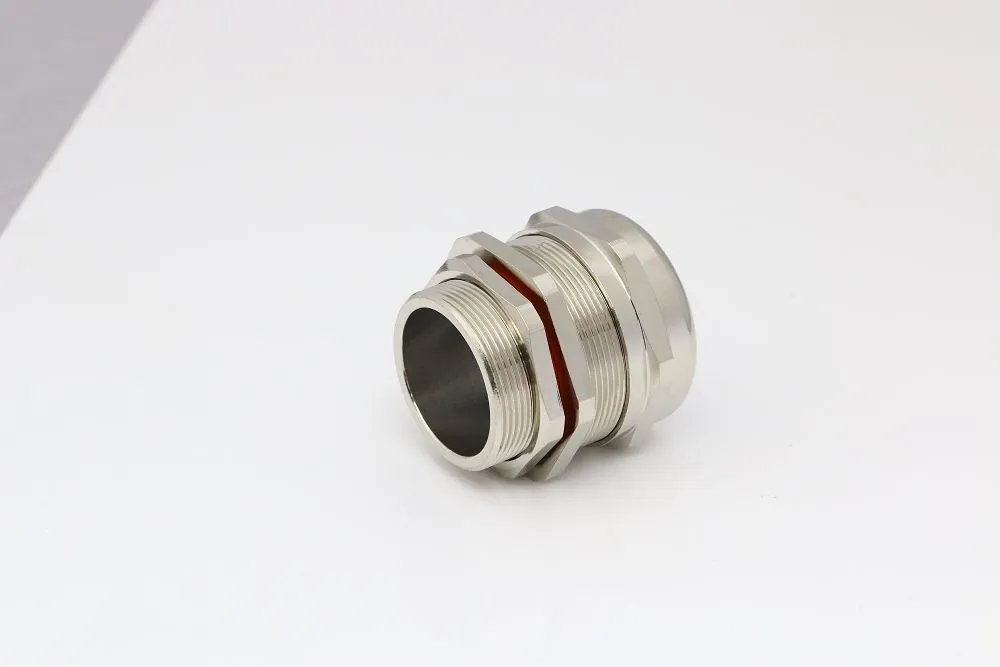

G Thread Gland
The G Thread Gland is a high-performance solution designed to provide superior protection for electrical cables against water, dust, and other environmental threats. Made from premium brass, this cable gland is engineered for durability and long-lasting performance in diverse industrial applications.
Products Description
The G Thread Gland is a high-performance solution designed to provide superior protection for electrical cables against water, dust, and other environmental threats. Made from premium brass, this cable gland is engineered for durability and long-lasting performance in diverse industrial applications.
| HSM-G G Thread | ||||||
| Artice no. | Thread Dimension (mm) |
Clamping range (mm) |
Thread AG (mm) |
GL (mm) |
Wrench size (mm) |
Packet units |
| HSM-G3/8 | G3/8" | 4～8 | 16.662 | 8 | 20 | 50 |
| HSM-G1/2-X | G1/2" | 5～10 | 20.995 | 8 | 24 | 50 |
| HSM-G1/2 | G1/2" | 6～12 | 20.995 | 8 | 24 | 50 |
| HSM-G1/2-D | G1/2" | 8～14 | 20.995 | 8 | 24 | 50 |
| HSM-G3/4-X | G3/4" | 6～12 | 26.441 | 8 | 30 | 50 |
| HSM-G3/4 | G3/4" | 8～14 | 26.441 | 8 | 30 | 50 |
| HSM-G3/4-D | G3/4" | 13～18 | 26.441 | 8 | 30 | 25 |
| HSM-G1 | G1" | 18～25 | 33.249 | 9 | 40 | 20 |
| HSM-G1-1/4 | G1-1/4" | 22～32 | 41.910 | 10 | 50 | 10 |
| HSM-G1-1/2 | G1-1/2" | 30～38 | 47.803 | 10 | 55 | 10 |
| HSM-G2 | G2" | 37～44 | 59.614 | 11 | 65 | 5 |
Key Features
1. Brass Construction: The use of brass ensures excellent corrosion resistance, making it suitable for both indoor and outdoor installations.
2. G Threading: Standard G threads offer a secure fit for a variety of cable diameters, ensuring a reliable connection.
3. Sealing Efficiency: Incorporates a high-quality rubber seal that compresses around the cable, creating a watertight and waterproof barrier.
4. Locking Nut: A robust locking nut prevents the gland from loosening, maintaining a tight seal over time.
5. Wide Temperature Range: Suitable for use in environments with fluctuating temperatures, maintaining its sealing properties.
6. Ease of Installation: Designed for quick and straightforward installation, reducing the time and effort required for cable protection.
Applications
- Marine and Coastal Areas: Protects cables from the corrosive effects of saltwater and humid air.
- Industrial Machinery: Shields cables from harsh conditions, including exposure to chemicals, oils, and abrasive materials.
- Construction Sites: Offers reliable protection for cables in outdoor environments where they are exposed to the elements.
The G-Series Brass Cable Gland is an essential component for any electrical installation that requires a high level of protection against environmental hazards, ensuring the safety and longevity of your cable systems.
