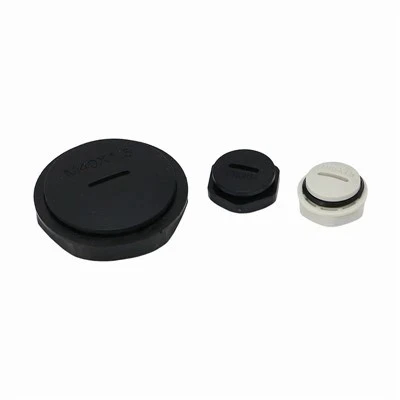

Dome Head Blanking Plug
The Dome Head Blanking Plug provides a secure, permanent, or temporary seal for unused threaded entry holes in industrial enclosures. Designed to match standard cable gland knockouts, it preserves the enclosure's environmental protection rating against dust, moisture, and corrosive agents. Built from engineered thermoplastics or precision-machined metals, it withstands mechanical stress and thermal fluctuations in harsh industrial environments.
Dome Head Blanking Plug | Technical Product Specification & Sourcing Guide
The Dome Head Blanking Plug provides a secure, permanent, or temporary seal for unused threaded entry holes in industrial enclosures. Designed to match standard cable gland knockouts, it preserves the enclosure's environmental protection rating against dust, moisture, and corrosive agents. Built from engineered thermoplastics or precision-machined metals, it withstands mechanical stress and thermal fluctuations in harsh industrial environments.
Key Features
Low-Profile Dome Head: Minimizes vertical clearance requirements while providing uniform surface pressure against the enclosure wall.
Integrated Sealing Ring: Features an O-ring (NBR or EPDM) seated in a dedicated groove to prevent slip-out and ensure a tight seal against housing surfaces.
Vibration Resistance: Deep thread engagement and interference fit prevent loosening caused by industrial machinery vibration.
Ingress Protection: Maintains up to IP68 (5 bar / 1 hour) protection when installed with a matching sealing ring.
Technical Specifications
|
Parameter |
Specification Details |
|
Thread Types |
Metric (ISO), PG (DIN 40430), NPT (ANSI B1.20.1), G (BSP) |
|
Thread Sizes |
Metric: M12 to M63; PG: PG7 to PG48; NPT: 1/4" to 2" |
|
Body Materials |
Polyamide 66 (PA66, UL94 V-2 / V-0), Nickel-Plated Brass, Stainless Steel (AISI 304 / 316) |
|
Sealing Gasket |
NBR (Standard), EPDM, Silicone (for high/low temperature variants) |
|
Working Temperature |
Plastic: -40°C to +100°C (continuous), up to +120°C (short-term); Metal: -60°C to +200°C (with silicone seal) |
|
IP Rating |
IP66 / IP68 (EN 60529) |
|
Approvals & Compliance |
RoHS, REACH, CE, UL94 (for plastic compounds) |
Product Options
Material Grades:
Flame-retardant PA66 (UL94 V-0 available for railway and transit applications).
Corrosion-resistant brass with flash nickel plating (salt spray test > 96 hours).
Acid-resistant stainless steel for marine and chemical processing plants.
Thread Configurations: Standard metric coarse threads and Pg conduit threads stocked for immediate dispatch; NPT and G threads available upon request.
Colors: Standard RAL 7035 (light grey), RAL 9005 (black), and RAL 7001 (silver-grey). Custom color matching available for OEM volume orders.
Applications
Electrical Control Panels: Sealing spare knockout holes reserved for future cable routing in PLC cabinets.
Industrial Machinery: Closing unused sensor and actuator ports on junction boxes and terminal blocks.
Outdoor Enclosures: Protecting telecom distribution boxes and rooftop solar inverter housings from rain and dust ingress.
Process Automation: Deploying in chemical and food-processing plants where washdown resistance is required.
OEM & ODM Customization
Non-Standard Threads: Custom thread pitches, extra-long thread shafts for thick enclosure walls, or special imperial thread forms.
Material Tailoring: Custom polymer compounds or specific stainless steel alloys (e.g., 316Ti) for aggressive chemical environments.
Laser Marking: Custom part numbers, batch codes, or corporate logos laser-etched directly onto the dome head.
Manufacturing Capability: In-house injection molding (with multi-cavity precision molds) and CNC automatic lathe machining ensure dimensional stability and consistent batch quality.
Quality Control
Incoming Material Inspection: Raw polymer pellets and metal bars undergo melt flow index testing and spectral chemical analysis.
Dimensional Verification: Key dimensions (thread pitch diameter, head thickness, and O-ring groove depth) are monitored on 2D optical projectors during production runs.
Seal Integrity Testing: Air leakage testing performed on production batches to verify IP68 performance.
Documentation: Material Test Reports (MTR / EN 10204 3.1 for metal parts), RoHS certificates, and dimensional inspection sheets supplied upon request.
Frequently Asked Questions
Q: How do I select the correct blanking plug size for my enclosure knockout?
A: Match the plug thread size directly to the existing threaded hole or cable gland knockout size (e.g., use an M20x1.5 plug for an M20 threaded entry).
Q: Which material should I choose for outdoor UV exposure?
A: Use UV-stabilized black PA66 (RAL 9005) or stainless steel. Standard light grey PA66 may degrade over extended years of direct sunlight exposure.
Q: Are O-rings included with the blanking plugs?
A: Yes. Every plug ships with a pre-assembled sealing ring matched to the thread standard.
Q: What is the maximum tightening torque for plastic vs. metal plugs?
A: Plastic PA66 plugs require moderate torque (refer to data sheet by thread size) to avoid thread stripping, whereas nickel-plated brass and stainless steel plugs tolerate higher mechanical torque.
Q: What is the minimum order quantity (MOQ) for standard stock items?
A: Standard catalog items (Metric M12-M32 in grey/black) have low MOQ thresholds (typically 100 pcs). Custom threads or colors require a minimum production run of 1,000 pcs.
Q: What is the standard production lead time?
A: Ex-stock standard items ship within 3 to 5 business days. Custom manufactured configurations require 15 to 25 business days depending on tooling requirements.
Request a Quote
To receive a formal quotation, please provide the following details:
Product Model / Thread Specification: e.g., Metric M20x1.5 or NPT 1/2"
Material Preference: PA66 Plastic, Nickel-Plated Brass, Stainless Steel
Required Quantity: Batch size and annual forecast
Target Delivery Port / Destination Country
Special Requirements: e.g., custom laser marking, silicone seals, or specific compliance documents
