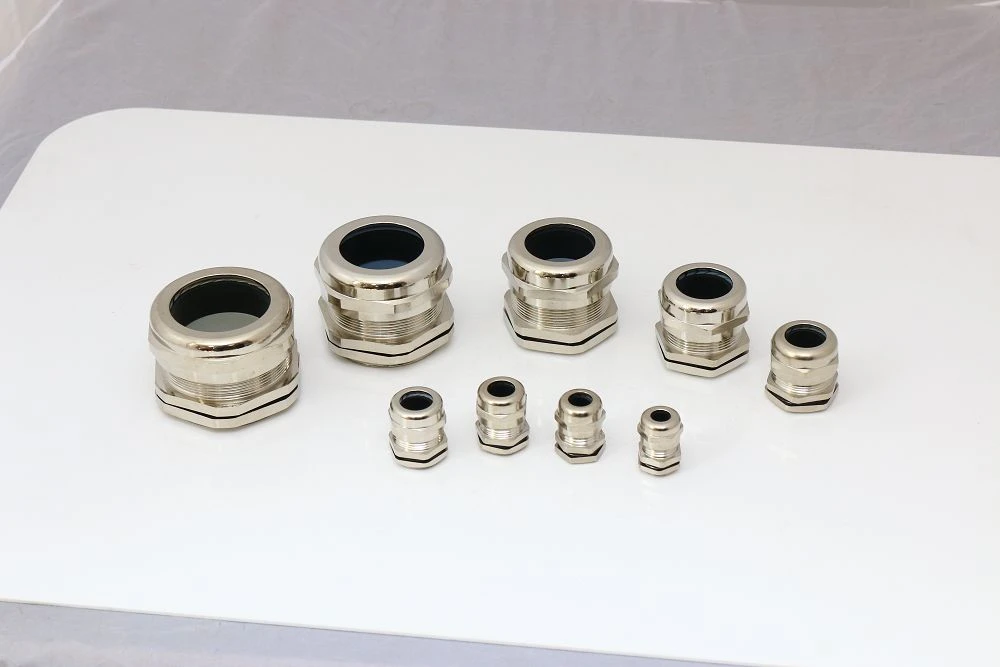

EMC Gland PG Thread
The EMC Gland PG Thread, also known as a Pipe Gauge (PG) thread gland, is a vital component in electrical installations designed to ensure the secure and safe passage of cables through enclosures. This product is particularly important in environments where the ingress of water, dust, and other contaminants must be strictly controlled to maintain the integrity and safety of electrical systems.
Products Description
The EMC Gland PG Thread, also known as a Pipe Gauge (PG) thread gland, is a vital component in electrical installations designed to ensure the secure and safe passage of cables through enclosures. This product is particularly important in environments where the ingress of water, dust, and other contaminants must be strictly controlled to maintain the integrity and safety of electrical systems. Here's a detailed introduction:
| HSM-P PG Thread | ||||||
| Artice no. | Thread Dimension (mm) |
Clamping range (mm) |
Thread AG (mm) |
GL (mm) |
Wrench size (mm) |
Packet units |
| HSM-PG7 | PG7 | 3～6.5 | 12.5 | 5 | 14 | 50 |
| HSM-PG9 | PG9 | 4～8 | 15.2 | 7 | 17 | 50 |
| HSM-PG11 | PG11 | 5～10 | 18.6 | 7 | 20 | 50 |
| HSM-PG13.5-X | PG13.5 | 4～8 | 20.4 | 7 | 22 | 50 |
| HSM-PG13.5 | PG13.5 | 6～12 | 20.4 | 7 | 22 | 50 |
| HSM-PG16-X | PG16 | 7～12 | 22.5 | 7 | 24 | 50 |
| HSM-PG16 | PG16 | 8～14 | 22.5 | 7 | 24 | 50 |
| HSM-PG21-X | PG21 | 11～16 | 28.3 | 8 | 30 | 25 |
| HSM-PG21 | PG21 | 13～18 | 28.3 | 8 | 30 | 25 |
| HSM-PG29-X | PG29 | 15～22 | 37 | 8 | 40 | 12 |
| HSM-PG29 | PG29 | 18～25 | 37 | 8 | 40 | 12 |
| HSM-PG36 | PG36 | 22～32 | 47 | 9 | 50 | 5 |
| HSM-PG42 | PG42 | 32～38 | 54 | 9 | 60 | 1 |
| HSM-PG48 | PG48 | 37～44 | 59.3 | 10 | 65 | 1 |
Overview
The EMC Gland PG Thread is engineered with a specific threading system known as the Pipe Gauge thread, which is a British standard for screw threads. This thread type is commonly used in applications where a robust and leak-proof seal is required, such as in conduit systems and cable glands.
Key Features
1. Thread Compatibility: The PG thread is designed to be compatible with British Standard Pipe (BSP) threads, ensuring a secure fit with corresponding pipe fittings and connectors.
2. Material Quality: Typically manufactured from durable materials like brass or stainless steel, the EMC Gland PG Thread offers excellent resistance to corrosion and wear, making it suitable for both indoor and outdoor use.
3. Sealing Capabilities: Equipped with a high-quality sealing mechanism, often a rubber or silicone gasket, it provides a watertight and dustproof seal, protecting the enclosed electrical components from environmental hazards.
4. Safety Compliance: The gland meets stringent safety standards, crucial for use in hazardous areas where the risk of explosion due to flammable gases or dust is present.
5. Ease of Installation: The PG thread design allows for straightforward installation and removal, simplifying maintenance and cable management processes.
Applications
The EMC Gland PG Thread is widely used in various industries, including oil and gas, marine, mining, and industrial automation, where reliable cable sealing and protection are paramount.
In summary, the EMC Gland PG Thread is a critical component in cable management systems, offering a secure and reliable method for cable entry into electrical enclosures. Its adherence to the Pipe Gauge thread standard ensures compatibility with a range of fittings, while its robust construction and sealing capabilities guarantee the safety and longevity of electrical installations.
