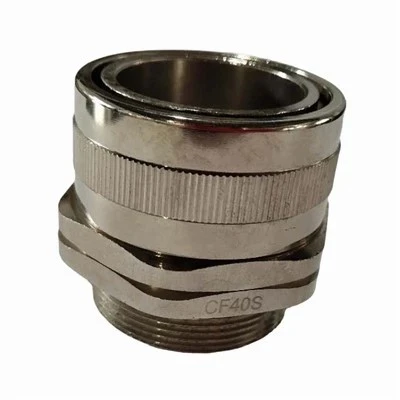

Nickel-Plated Brass Cable Gland
Nickel-plated brass cable glands provide secure cable entry, strain relief, and environmental protection for electrical enclosures and machinery. Built from high-grade solid brass and finished with a corrosion-resistant nickel layer, these fittings maintain electrical conductivity while withstanding harsh industrial environments. Each unit features a multi-element clamping and sealing structure that secures the cable and prevents liquid or dust ingress without damaging the outer sheath.
Precision-machined brass cable glands engineered for secure mechanical cable retention, earth continuity, and reliable environmental sealing in industrial enclosures.
Product Overview
Nickel-plated brass cable glands provide secure cable entry, strain relief, and environmental protection for electrical enclosures and machinery. Built from high-grade solid brass and finished with a corrosion-resistant nickel layer, these fittings maintain electrical conductivity while withstanding harsh industrial environments. Each unit features a multi-element clamping and sealing structure that secures the cable and prevents liquid or dust ingress without damaging the outer sheath.
Key Features
Material Composition: Body, locknut, and sealing nut machined from solid HPb59-1 or CW614N brass, offering high mechanical strength and impact resistance.
Surface Treatment: Electroplated nickel coating (3 to 5 microns) provides corrosion resistance against moisture, salt spray, and industrial chemicals.
Sealing Structure: Nitrile rubber (NBR) or silicone sealing insert and O-ring deliver an IP68 waterproof and dustproof rating (up to 5 bar pressure resistance).
Clamping Mechanism: Polyamide (PA6) claw design distributes mechanical gripping force evenly around the cable circumference, providing high pull-out resistance and preventing cable twist.
Technical Specifications
|
Parameter |
Specification Details |
|
Thread Types |
Metric (M), PG, NPT, G (PF) |
|
Thread Sizes |
Metric: M12 to M63 / PG: PG7 to PG48 / NPT: 1/4" to 2" |
|
Cable Clamping Range |
3.0 mm to 44.0 mm (dependent on thread size) |
|
Ingress Protection |
IP68 (5 bar / 60 min) |
|
Operating Temperature |
Static: -40 Deg C to +100 Deg C (Short-term up to +120 Deg C); Dynamic: -20 Deg C to +80 Deg C |
|
Material Grade |
Brass MS58 / CW614N / HPb59-1 |
|
Plating |
Nickel-plated |
|
Compliance & Standards |
CE, RoHS, REACH, UL-recognized components, manufactured under ISO9001 factory production standards |
Product Options
Thread Standards: Available in Metric (EN 60423), PG (DIN 40430), NPT (ANSI/ASME B1.20.1), and G threads.
Sealing Inserts: Standard NBR rubber for general industrial use; high-temperature silicone (-60 Deg C to +200 Deg C) or EPDM upon request.
Special Claws: Multi-hole sealing inserts for routing multiple cables through a single gland.
Accessories: Matching brass locknuts, flat washers, and earthing tags supplied separately or pre-assembled.
Applications
Electrical Control Panels: Cable entry points for PLC cabinets, drive enclosures, and industrial automation panels.
Industrial Machinery: Machine tool wiring, robotics, and conveyor system junction boxes.
Outdoor Equipment: Telecommunications enclosures, traffic signal control boxes, and outdoor lighting distribution units.
Renewable Energy: Solar inverter cabinets and wind turbine nacelle junction boxes.
OEM & ODM Customization
Non-Standard Threads: Custom thread pitches, extra-long thread lengths, or specialized imperial threading machined to engineering drawings.
Material Modifications: Unplated brass, marine-grade nickel-aluminum bronze, or stainless steel (304/316L) variants.
Custom Packaging: Bulk industrial packaging, individual polybagging with barcode labels, or customized kit assemblies (gland + locknut + washer).
Manufacturing Capacity: CNC automatic lathe turning lines with automated deburring and plating lines ensure stable output for high-volume OEM contracts.
Quality Control & Engineering Resources
Dimensional Inspection: 100% profile screening using optical projectors and digital thread gauges to verify thread pitch diameter, tolerance classes (6g), and hexagon tolerances.
Plating Adhesion Test: Cross-hatch and salt spray testing (ASTM B117, 96-hour neutral salt spray) to ensure nickel coating integrity.
Seal Integrity Test: Pneumatic pressure decay testing and submersion water testing to verify IP68 sealing performance under operational pressure.
Material Traceability: Mill test certificates (MTC) and regional compliance documentation available upon request.
CAD & Technical Downloads: Downloadable 2D/3D CAD models (STEP/IGES) and comprehensive PDF data sheets are available to assist design and panel-building integration.
Frequently Asked Questions
Q: How do I select the correct thread size for my enclosure knockout?
A: Match the knockout hole diameter to the thread designation (e.g., an M20x1.5 gland requires a 20.5 mm hole). Refer to the technical drawing for exact panel clearance hole dimensions.
Q: What is the exact cable outer diameter range for an M20 gland?
A: Standard M20x1.5 brass cable glands accommodate cable outer diameters from 6.0 mm to 12.0 mm. Heavy-duty or multi-hole inserts are available for alternative wire sizes.
Q: Can these glands withstand continuous outdoor exposure?
A: Yes. The nickel-plated brass body and UV-resistant NBR/silicone seals prevent oxidation and material degradation in outdoor industrial environments.
Q: What is the minimum order quantity (MOQ) for standard sizes?
A: Standard sizes stocked in inventory have an MOQ of 100 pieces per size. Custom thread specifications or non-standard configurations require an MOQ of 1,000 pieces.
Q: What is the standard production lead time?
A: Stock items ship within 3 to 5 business days. OEM custom production runs require 15 to 25 business days depending on order volume and plating schedules.
Q: What quality documentation is included with shipments?
A: Each shipment includes a Certificate of Conformance (CoC), material test report, and dimensional inspection checklist upon request.
Request a Quote
To receive a formal quotation, please provide the following details:
Product Model / Series: (e.g., PG series, Metric series)
Thread Specification: (e.g., M20x1.5, PG13.5)
Cable Outer Diameter (OD): (in mm)
Required Quantity: (pcs)
Special Requirements: (e.g., extended thread, silicone seals, custom packaging)
