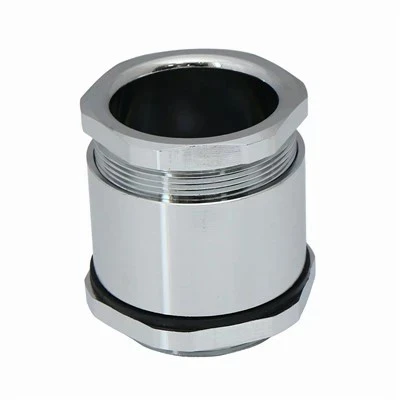

Wide-Range Brass Cable Gland
The Wide-Range Brass Cable Gland features an engineered multi-slot clamping claw and a progressive sealing ring, providing an extended cable clamping range per individual gland size. Manufactured from precision-machined forged brass with a corrosion-resistant nickel-plated finish, it ensures reliable mechanical strain relief, continuous earth continuity, and IP68 liquid-tight protection for demanding industrial electrical enclosures.
Product Overview
The Wide-Range Brass Cable Gland features an engineered multi-slot clamping claw and a progressive sealing ring, providing an extended cable clamping range per individual gland size. Manufactured from precision-machined forged brass with a corrosion-resistant nickel-plated finish, it ensures reliable mechanical strain relief, continuous earth continuity, and IP68 liquid-tight protection for demanding industrial electrical enclosures.
Key Features
Extended Clamping Range: Progressive inner lamellar seal accommodates wider cable outer diameter variations, reducing SKU diversity and inventory holding for panel builders.
Heavy-Duty Brass Body: Solid H59/H62 forged brass construction delivers high mechanical strength, impact resistance, and inherent electromagnetic shielding (EMC compliance).
Progressive Clamping Mechanism: Internal multi-slot fingers distribute radial clamping pressure uniformly around the cable sheath to prevent pull-out and torsional twisting.
Continuous Ingress Protection: Elastomeric sealing ring (EPDM / NBR) forms a reliable 360-degree seal against dust, moisture, and industrial fluids.
Technical Specifications
|
Parameter |
Specification |
|
Thread Standards |
Metric (ISO 965), PG (DIN 40430), NPT (ANSI B1.20.1), G (PF) |
|
Metric Thread Size |
M12 to M63 |
|
PG Thread Size |
PG7 to PG48 |
|
NPT Thread Size |
1/4" to 2" |
|
Cable Clamping Capacity |
3 mm to 44 mm (model dependent) |
|
Body Material |
Nickel-Plated Brass (Standard) / Untreated Brass / Stainless Steel 304/316 (Custom) |
|
Seal Material |
EPDM (Standard, -40°C to +100°C) / Viton (High-temperature variant up to +150°C) |
|
Ingress Protection Rating |
IP68 (5 bar / 1 hour) / IP69K |
|
Operating Temperature |
-40°C to +100°C (continuous) |
Product Options & Engineering Resources
Surface Finishes: Matte nickel-plated, bright nickel-plated, or passivation treatment.
Pre-Assembled Accessories: Supplied with matching hexagonal locknuts and Nitrile/EPDM face-sealing O-rings upon request.
Thread Length Options: Standard thread or extended thread reach for thick-walled enclosures.
Specialized Inserts: Multi-hole sealing inserts for routing multiple cables through a single entry point.
Digital Engineering Support: 2D and 3D CAD drawings (STEP / IGES formats) are available for direct download to support electrical panel layout integration.
Applications
Industrial electrical control cabinets and automation switchgear
Heavy machinery, industrial robotics, and production lines
Outdoor distribution boxes and telecommunication housings
Renewable energy inverters and solar junction boxes
Marine and offshore equipment requiring high corrosion resistance
OEM & ODM Manufacturing Capabilities
Custom Machining: Non-standard thread pitches, customized thread lengths, or special imperial-to-metric conversions machined strictly to customer drawings.
Material Customization: Special copper-zinc alloys or surface treatments tailored for corrosive chemical or offshore marine environments.
Laser Branding: Permanent laser etching of customer part numbers, company logos, or traceability batch codes on the hex flats.
Flexible Packaging: Bulk industrial packaging or kitted sets (gland, locknut, and O-ring bundled per assembly line requirements).
Quality Control & Quality Assurance
CNC Machining Tolerance: Produced on multi-axis CNC lathes maintaining tight thread tolerances compliant with international standards.
Dimensional Inspection: 100% profile, pitch diameter, and thread gauge checks implemented across production lots.
Pressure & Seal Testing: Routine pneumatic and hydrostatic immersion tests verifying long-term IP68 seal integrity.
Material Traceability: Mill Test Certificates (MTC) for raw brass bar stock available upon request.
Regulatory Compliance: Manufactured in compliance with relevant EN standards; fully RoHS and REACH compliant.
Frequently Asked Questions
Q: How does a wide-range cable gland reduce inventory costs?
A: A wide-range gland features an extended lamellar clamping design. One single gland model covers a broader span of cable diameters (e.g., 6–12 mm), allowing panel builders to stock fewer SKUs while covering various cable specs.
Q: Which thread types are available in standard stock?
A: Metric (ISO) and PG threads are maintained in standard inventory. NPT and G threads are available via scheduled production runs or custom machining.
Q: What is the standard plating thickness for the brass body?
A: The standard electroplated nickel coating is maintained at a minimum of 3 μm, providing robust oxidation resistance and salt-spray protection.
Q: Are these glands suitable for outdoor and high-vibration applications?
A: Yes. The robust brass structure combined with the internal multi-slot clamping claw provides excellent mechanical resistance against continuous vibration and outdoor weathering.
Q: What is the typical Minimum Order Quantity (MOQ) for standard vs. custom items?
A: Standard catalog items feature flexible MOQ terms designed for distributor stocking. Custom machined threads or laser branding depend on the specific technical configuration.
Q: What are the standard lead times for bulk procurement?
A: Standard inventory items ship within 7 to 15 working days. Custom OEM production runs typically require 20 to 30 days depending on manufacturing schedules.
Request a Quote
To receive a formal quotation, technical datasheet, or CAD files, please submit the following parameters to our engineering sales team:
Thread Specification & Type (e.g., Metric M20 x 1.5)
Cable Outer Diameter Range (Min. to Max. mm)
Required Quantity (Batch quantity or annual estimated volume)
Accessory Requirements (With/without locknuts and face-sealing O-rings)
Special Requests (Custom laser marking, material certificates, or specialized packaging)
