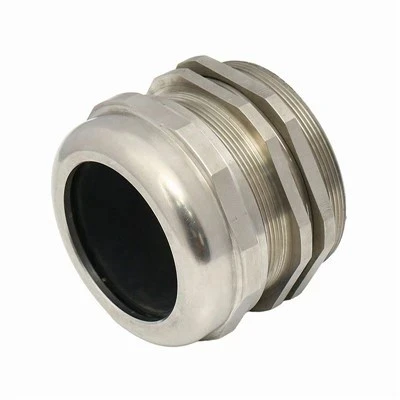

SS304 Stainless Steel Gland
The SS304 Stainless Steel Cable Gland provides secure cable entry, environmental sealing, and mechanical strain relief for industrial enclosures. Fabricated from grade 304 stainless steel with precision machining, it resists corrosion, mechanical impact, and washdown chemicals. Engineered for standard metric, PG, NPT, and G threads, it maintains enclosure integrity in demanding industrial, marine, and outdoor environments.
Product Overview
The SS304 Stainless Steel Cable Gland provides secure cable entry, environmental sealing, and mechanical strain relief for industrial enclosures. Fabricated from grade 304 stainless steel with precision machining, it resists corrosion, mechanical impact, and washdown chemicals. Engineered for standard metric, PG, NPT, and G threads, it maintains enclosure integrity in demanding industrial, marine, and outdoor environments.
Key Features
Material Composition: Machined from solid AISI 304 stainless steel stock, delivering high tensile strength and oxidation resistance in humid or mildly corrosive atmospheres.
Sealing Structure: Multi-element design featuring an EPDM or NBR sealing insert and O-ring, achieving consistent IP68 / IP69K liquid and dust ingress protection.
Clamping Mechanism: Claw-and-seal design distributes uniform radial pressure around the cable jacket, providing high pull-out resistance without cutting the insulation.
Grounding & Continuity: Metal-to-metal contact path ensures reliable electrical continuity when used with armored or shielded cables (select variants).
Technical Specifications
|
Parameter |
Specification Detail |
|
Material |
AISI 304 Stainless Steel (Body, Locknut, Clamping Claw) |
|
Seal & O-Ring |
NBR (Standard) / FKM / Silicone (Optional) |
|
Thread Types |
Metric (M), PG, NPT, G (PF) |
|
Cable Diameter Range |
3 mm to 44 mm (dependent on thread size) |
|
Ingress Protection |
IP68 (5 bar, 30 min) / IP69K |
|
Operating Temperature |
-40°C to +100°C (NBR seal); up to +200°C (FKM seal) |
|
Manufacturing Standards |
Manufactured under ISO 9001 standards; compliant with RoHS and REACH directives |
Product Options
Thread Standards: Metric (M12 to M63), PG (PG7 to PG48), NPT (1/4" to 2"), and G threads.
Sealing Inserts: Standard single-hole inserts, multi-hole inserts (for routing multiple cables through one gland), and flat seals for thin-walled enclosures.
Accessory Bundles: Supplied with matching stainless steel locknuts and captive O-rings as a complete assembly.
Applications
Electrical Control Panels: Outdoor junction boxes, automation cabinets, and motor control centers requiring washdown resistance.
Industrial Machinery: Food processing equipment, pharmaceutical skids, and packaging lines exposed to frequent cleaning agents.
Marine & Offshore: Deck-mounted instrument enclosures, coastal infrastructure, and lighting fixtures.
Renewable Energy: Solar inverter housings and wind turbine control boxes.
OEM & ODM Customization
Custom Machining: Non-standard thread pitches, extended thread lengths, or specific body hex dimensions tailored to OEM enclosure designs.
Material Variants: Upgrades to AISI 316 / 316L stainless steel for marine or chemical plant specifications.
Private Labeling: Laser-etched part numbers, company logos, or thread specifications directly onto the gland body or locknut.
Quality Control
Dimensional Inspection: 100% optical comparator and digital thread gauge checks to verify ISO/DIN thread tolerance classes.
Material Verification: PMI (Positive Material Identification) spectrometer testing confirms authentic SS304 alloy composition prior to production.
Pressure & Leak Testing: Sample-based pneumatic and hydrostatic pressure testing to verify IP68 seal compression limits.
Documentation: Material Test Reports (MTR / EN 10204 3.1) and compliance certificates available upon request.
Frequently Asked Questions
Q: How do I select the correct thread type for my panel?
A: Match the panel knockout or tapped hole standard. Metric threads use standard pitch (e.g., M20x1.5), whereas PG threads follow DIN 40430 standards. Verify hole diameter and wall thickness before ordering.
Q: What is the cable clamping range for an M20 size?
A: Standard M20x1.5 glands accommodate cable outer diameters from 6 mm to 12 mm. Narrower or wider clamping ranges are available via specialized internal inserts.
Q: Is SS304 suitable for marine coastal environments?
A: SS304 provides adequate corrosion resistance for general outdoor and industrial washdown use. For direct marine splash zones or high-salinity environments, SS316 is recommended.
Q: What is the standard MOQ for custom threads or laser marking?
A: Minimum order quantities start at 500 pieces per size for custom laser marking and 1,000 pieces for non-standard CNC machined thread geometries.
Q: Are locknuts and O-rings included with the gland?
A: Yes. Every gland ships pre-assembled with a matching stainless steel locknut and NBR sealing O-ring.
Q: What is the typical production lead time?
A: Standard catalog items ship within 7 to 10 days. Custom production runs require 20 to 25 days depending on volume and finishing requirements.
Request a Quote
To receive an accurate quotation within 24 hours, please provide the following project details:
Product Model / Thread Specification: (e.g., Metric M20x1.5)
Cable Outer Diameter (OD):
Required Quantity:
Seal Material Preference: (NBR / FKM)
Target Delivery Port / Destination:
Special Requirements: (e.g., MTR documentation, custom laser etching)
