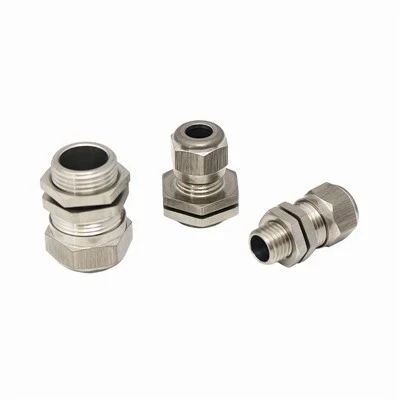

SS316 Stainless Steel Gland
The SS316 stainless steel cable gland provides secure mechanical cable entry, environmental sealing, and electrical grounding for industrial enclosures. Manufactured from marine-grade 316 stainless steel, it delivers superior resistance to pitting, chlorides, and harsh chemical washdowns. Engineered for critical applications requiring high mechanical stress tolerance and long-term ingress protection up to IP68 and IP69K.
SS316 Stainless Steel Cable Gland | Marine Grade IP68/IP69K Strain Relief Connector
The SS316 stainless steel cable gland provides secure mechanical cable entry, environmental sealing, and electrical grounding for industrial enclosures. Manufactured from marine-grade 316 stainless steel, it delivers superior resistance to pitting, chlorides, and harsh chemical washdowns. Engineered for critical applications requiring high mechanical stress tolerance and long-term ingress protection up to IP68 and IP69K.
Key Features
Material Integrity: Precision-machined from solid AISI 316 (1.4401) stainless steel, offering high resistance to marine atmospheres, acids, and saline washdowns.
Sealing Structure: Multi-element assembly featuring an EPDM or Viton sealing ring and claw mechanism that ensures uniform radial compression around the cable jacket.
Clamping Mechanism: Polyamide (PA6) or stainless steel claw design provides high tensile strain relief, preventing cable pull-out under severe vibration.
Ingress Protection: Maintains a continuous IP68 (10 bar / 30 min) and IP69K rating when correctly installed, protecting internal electronics from moisture, dust, and high-pressure steam cleaning.
Technical Specifications
|
Parameter |
Specification |
|
Body Material |
AISI 316 Stainless Steel (Locknut, Body, Sealing Nut) |
|
Claw |
Polyamide PA6 (Standard) / Stainless Steel (Optional) |
|
Seal / O-Ring |
EPDM (Standard, -40°C to +100°C) / Viton (Optional, up to +150°C) |
|
Thread Types |
Metric (M), PG, NPT, G (PF) |
|
Thread Sizes |
M12 to M63, PG7 to PG48, NPT 1/4" to NPT 2" |
|
Cable Clamping Range |
3 mm to 44 mm (dependent on model size) |
|
Ingress Protection |
IP68 (10 bar / 30 min), IP69K |
|
Operating Temperature |
-40°C to +100°C (continuous), up to +120°C (intermittent) |
|
Recommended Tightening Torque |
3.5 Nm to 12.0 Nm (dependent on thread size; specific torque guidelines available upon request to ensure proper seal compression without jacket distortion) |
Product Options & Engineering Support
Thread Standards: Metric, NPT, PG, and G threads available out of stock or customized via CNC turning.
Sealing Inserts: Standard multi-hole inserts, flat cable inserts, and reduced-diameter inserts for specific multi-cable layouts.
Internal Components: Standard PA6 clamping claw or all-metal grounding insert for EMC shielded cables.
Surface Finish: Standard passivated industrial finish or electro-polished finish for hygienic and sanitary environments.
CAD Drawings: STEP, IGES, and 2D technical drawings available upon request for layout design and EPLAN/SolidWorks integration.
Typical Applications
Marine & Offshore Equipment: Deck machinery, desalination skids, and shipbuilding control panels exposed to salt spray.
Food & Beverage Processing: Washdown-frequent production lines requiring resistance to caustic cleaning agents.
Chemical & Petrochemical Plants: Junction boxes and instrumentation housings in corrosive processing environments.
Outdoor Electrical Enclosures: Telecommunications cabinets, solar inverter stations, and traffic control boxes.
OEM & ODM Customization Capabilities
In-House Machining: CNC Swiss-type lathes and multi-axis machining centers allow custom thread pitches, extended thread lengths, and non-standard body dimensions.
Material Traceability: Mill Test Certificates (MTC) supplied upon request to verify 316 material composition (16–18% Cr, 10–14% Ni, 2–3% Mo).
Laser Marking: Custom part numbers, company logos, and batch codes permanently laser-etched on gland bodies.
Custom Packaging: Bulk industrial packaging or kitted sets with matching locknuts and O-rings.
Quality Control & Testing Standards
Dimensional Inspection: 100% profile and thread gauge inspection using optical comparators and digital thread plug/ring gauges.
Material Spectrometry: Direct PMI (Positive Material Identification) testing on raw bar stock to verify SS316 alloy composition.
Pressure & Leak Testing: Periodic destructive and non-destructive hydrostatic pressure testing verifying IP68 (10 bar / 30 min) and IP69K sealing performance.
Documentation: RoHS, REACH, CE declarations, and ISO 9001 factory test reports available on request.
Frequently Asked Questions
Q: How does SS316 differ from SS304 in cable gland applications?
A: SS316 contains molybdenum (2–3%), providing significantly higher resistance to chlorides, marine atmospheres, and acidic cleaning chemicals compared to SS304.
Q: Are locknuts and O-rings included with the cable glands?
A: Yes, every standard gland is supplied pre-assembled with an O-ring (on the connecting thread) and a matching stainless steel locknut.
Q: What is the recommended mounting hole tolerance?
A: Clearance holes should be drilled 0.2 mm to 0.4 mm larger than the nominal major diameter of the external thread.
Q: Can these glands be used for EMC shielded cables?
A: Yes, optional EMC insert configurations with spring contacts are available for continuous 360-degree screen grounding.
Q: What is the minimum order quantity (MOQ) for custom thread sizes?
A: Standard stock items have no strict MOQ. Custom CNC machined threads or special dimensions typically require an MOQ of 500 to 1,000 pieces per size.
Q: What is the standard production lead time?
A: Standard metric and NPT sizes ship within 3 to 7 business days. Custom orders require 15 to 25 business days depending on machine scheduling.
Request a Quote & CAD Files
To receive a prompt technical evaluation, commercial quotation, or 3D STEP files, please provide the following details:
Thread Type & Size: (e.g., M20x1.5, NPT 3/4", PG13.5)
Cable Outer Diameter (OD): (Min–Max mm)
Quantity Required: (Prototype, batch, or annual forecast)
Special Requirements: (EMC grounding, Viton seals, custom laser marking, or specific packaging)
Engineering Files: (Specify if STEP files are needed for your project layout)
