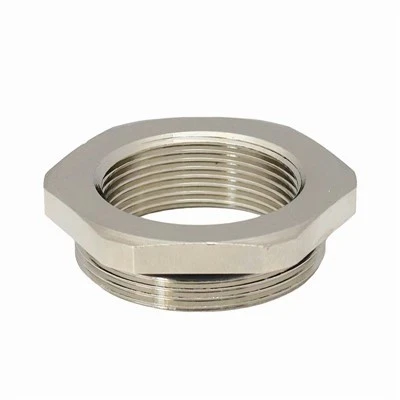

Thin Hex Gland Locknut
The Thin Hex Gland Locknut secures cable glands in space-constrained industrial enclosures, switchgear, and machinery. Designed with a reduced profile compared to standard hex nuts, it provides reliable thread engagement and retention where internal clearance is limited.
Product Overview
The Thin Hex Gland Locknut secures cable glands in space-constrained industrial enclosures, switchgear, and machinery. Designed with a reduced profile compared to standard hex nuts, it provides reliable thread engagement and retention where internal clearance is limited.
Key Features
Low-Profile Architecture: Reduced thickness allows installation in tight internal spaces without interfering with adjacent components.
Precision Threads: Clean, burr-free metric, PG, NPT, and G threads ensure smooth engagement and prevent cross-threading during assembly.
Vibration Resistance: Manufactured with parallel faces to maintain uniform clamping force against enclosure walls under operational vibration.
Material Integrity: Solid construction from corrosion-resistant brass, stainless steel, or polyamide provides mechanical stability across diverse operating environments.
Technical Specifications
|
Parameter |
Specification |
|
Thread Types |
Metric (ISO), PG (DIN 40430), NPT, G (PF) |
|
Thread Sizes |
Metric: M12 to M63; PG: PG7 to PG48 |
|
Materials |
Nickel-plated brass, Stainless Steel (304/316), PA66 Nylon |
|
Operating Temperature |
Brass/Stainless Steel: -40°C to +200°C; Nylon: -20°C to +80°C |
|
Max. Tightening Torque |
Varies by size and material (e.g., M20 Brass: approx. 5.0–7.0 Nm; consult data sheet for specific limits) |
|
Ingress Protection |
Maintains panel rating (IP66 / IP68 / IP69K) when paired with standard sealing glands |
Product Options
Materials: Nickel-plated brass (standard production), passivated stainless steel for marine or chemical exposure, and flame-retardant PA66 nylon.
Thread Standards: Full range of metric and PG pitches matching international enclosure knockouts.
Surface Finishes: Matte nickel plating or raw unplated metal variants.
Applications
Electrical control panels and automation cabinets
Compact industrial machinery and robotics
HVAC distribution boxes and instrumentation housings
Renewable energy inverters and junction boxes
Manufacturing Capabilities & OEM/ODM Customization
In-House Production: Utilizing precision CNC machining and cold-forming lines to maintain strict dimensional tolerances across high-volume production batches.
Custom Dimensions: Capabilities for non-standard thread pitches, customized thickness profiles, and modified wrenching flat dimensions.
Special Alloys: Custom material sourcing for specific chemical resistance requirements.
Packaging Solutions: Industrial bulk packaging or barcoded labeling designed for automated assembly and warehouse lines.
Quality Control & Certifications
Process Inspection: 100% optical comparator checks on thread pitch diameter, inner diameter, and overall thickness during production runs.
Gauging & Testing: Routine thread verification using calibrated plug and ring gauges per ISO/DIN standards.
Material Verification: Spectrometer material composition testing; 3.1 material test certificates available for metal variants upon request.
Compliance Standards: ISO 9001 certified manufacturing processes; RoHS and REACH compliant documentation supplied with shipments.
Frequently Asked Questions
Q: How do I select the correct locknut size?
A: Match the locknut thread specification directly to the mounting thread of your cable gland (e.g., an M20 gland requires an M20 thin locknut).
Q: Why use a thin locknut instead of a standard nut?
A: Thin locknuts are engineered for panels with limited internal clearance where standard nuts cause assembly interference.
Q: Are these locknuts reusable?
A: Metal variants (brass and stainless steel) can be uninstalled and reused if threads remain undamaged. Note for Stainless Steel: Apply a light thread lubricant or anti-seize compound prior to re-installation to prevent potential thread galling. Nylon variants should be inspected for wear before reuse.
Q: What is the minimum order quantity (MOQ)?
A: Standard sizes maintained in stock have low MOQs. Custom threads or special material runs are subject to agreed production minimums.
Q: What are the standard delivery lead times?
A: Ex-stock standard items ship within 3 to 5 business days. Custom production orders typically require 15 to 25 days.
Q: Can these withstand high vibration?
A: Yes. When torqued to specified limits against a flat enclosure surface, parallel faces distribute clamping stress to resist loosening.
Request a Quote
To receive a prompt technical proposal and commercial quotation, please provide:
Part number or material specification (Brass / Stainless Steel / Nylon)
Thread type and size (e.g., M20 x 1.5, PG13.5)
Required quantity per order batch
Special packaging or certification requirements (e.g., Material Test Certificates)
