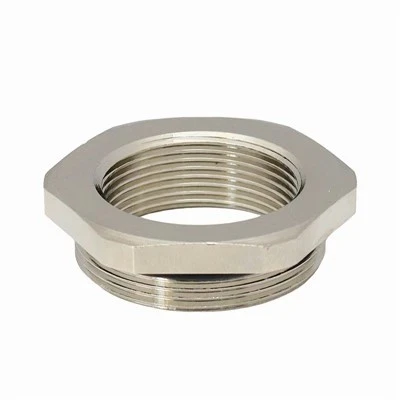

Brass Anti-Bend Cable Gland
The Brass Anti-Bend Cable Gland features an integrated spiral spring guard engineered to eliminate stress concentration and prevent cable fracture caused by over-bending, sharp angles, or continuous mechanical flexing. Built from precision-machined brass with a durable nickel finish, it delivers robust mechanical strain relief, secure cable retention, and reliable IP68 environmental sealing for industrial electrical installations.
Product Overview
The Brass Anti-Bend Cable Gland features an integrated spiral spring guard engineered to eliminate stress concentration and prevent cable fracture caused by over-bending, sharp angles, or continuous mechanical flexing. Built from precision-machined brass with a durable nickel finish, it delivers robust mechanical strain relief, secure cable retention, and reliable IP68 environmental sealing for industrial electrical installations.
Key Features
Material Integrity: High-grade nickel-plated H59 brass body provides exceptional corrosion resistance, mechanical impact strength, and inherent EMC shielding capability.
Stress-Relief Spiral Guard: Extended stainless steel or brass spring guard restricts the bending radius, safeguarding cable cores in dynamic, high-vibration applications.
Precision Sealing System: EPDM/Nitrile rubber inner seal and O-ring ensure a 360-degree uniform waterproof grip around the cable outer diameter.
Advanced Clamping Mechanism: Multi-slot claw design secures the cable and withstands high pull-out forces under heavy axial tension.
Environmental Protection: Certified up to IP68 (5 bar) against dust ingress and continuous liquid immersion.
Technical Specifications & Engineering Resources
|
Thread Standards |
Metric (EN 60423), PG (DIN 40430), NPT, G (PF). |
|
Thread Size Range |
Metric (M12 to M40), PG (PG7 to PG36), NPT (3/8" to 1"). |
|
Cable Clamping Range |
3 mm to 25 mm (model-dependent). |
|
Body Material |
H59 Brass, Nickel-Plated. |
|
Seal Material |
EPDM (Standard to ), Viton (Optional for high-temperature environments). |
|
Ingress Protection |
IP68 (5 bar). |
|
Global Compliance |
RoHS, REACH, CE compliant. |
|
Engineering Support |
Download 2D / 3D CAD drawings (STEP / IGES format) and full technical data sheets via the inquiry form below for seamless EPLAN / SolidWorks integration. |
Product Options
Surface Finish: Nickel-plated (Standard, corrosion-resistant) or unplated raw brass.
Thread Variations: Full metric, PG, NPT, and G thread matrices available off-the-shelf.
Clamping Inserts: Standard PA6 nylon claws or heavy-duty all-brass multi-slot inserts.
Custom Apertures: Single-hole, multi-hole, or flat-cable sealing inserts engineered to spec.
Applications & Industry Environments
Industrial Automation & Robotics: Securing control and sensor cables on moving robotic arms, drag chains, and automated production lines.
Heavy Machinery: Providing mechanical protection for power and signal entries on CNC machines and industrial presses.
Outdoor Infrastructure: UV-resistant and weather-proof cable entry for outdoor junction boxes, traffic control systems, and telecommunication towers.
Renewable Energy: Solar inverter cabinets, wind turbine pitch control systems, and offshore electrical modules.
OEM & ODM Customization
Machining Capabilities: Custom thread lengths, non-standard thread pitches (e.g., UNEF, special BSP), and custom body geometries executed on high-precision CNC turning centers.
Alloy Alternatives: Specialized copper alloys available for marine or extreme chemical environments.
Traceability & Branding: Laser-etched customer part numbers, logos, or certification symbols directly on the gland body.
Flexible Packaging: Industrial bulk packs or pre-assembled contractor kits including locknuts and washers.
Quality Control & Testing Standards
Dimensional Metrology:
100% automated optical and caliper screening of thread pitch tolerances (6g class) and inner diameters.
Material Verification:
Spectrometer testing ensures strict compliance with brass chemical composition standards ().
Rigorous Performance Testing:
Mechanical Pull-out Test: Verifying axial cable retention forces.
Hydrostatic Pressure Test: Validating IP68 seal performance under 5 bar pressure.
Salt Spray Test: Exceeding 96 hours of neutral salt spray exposure to confirm nickel-plating integrity.
Documentation:
EN 10204 3.1 Material Test Reports and compliance declarations provided upon request.
Frequently Asked Questions
Q: How do I choose the correct thread size for my enclosure cutout?
A: Match the gland thread designation (e.g., M20 1.5) to your panel's tapped entry or pre-drilled clearance hole. Refer to our thread conversion chart or download our CAD blocks to verify clearance.
Q: What is the exact cable clamping range for an M20 anti-bend gland?
A: Standard M20 1.5 models accommodate cable outer diameters from 6 mm to 12 mm. Custom reduced-range or multi-hole seals are available for specific thin cables.
Q: Are these glands suitable for permanent outdoor marine environments?
A: Yes. The nickel-plated H59 brass construction resists UV radiation, salt mist corrosion, and ozone degradation, preserving the IP68 seal outdoors.
Q: Do these standard glands provide Electromagnetic Compatibility (EMC) shielding?
A: Standard models offer basic metal-to-metal grounding. For high-frequency EMI/EMC shielding needs, please request our specialized EMC glands equipped with internal spring fingers.
Q: What is the minimum order quantity (MOQ) for customized thread specs or laser branding?
A: MOQs start at 500 pieces for customized laser markings or non-standard thread lengths. Contact our engineering team to review tooling requirements.
Q: What are your typical production and shipping lead times?
A: Standard catalog items ship within 5 to 7 business days. Custom CNC-machined orders typically require 15 to 25 business days depending on production volume.
Request a Quote & CAD Files
Need technical validation, 3D models, or a volume quotation? Send your BOM or specifications to our engineering team:
Thread Specification & Size (e.g., M20 1.5, PG13.5, NPT 1/2")
Cable Outer Diameter ()
Required Quantity (pcs)
Target Delivery Timeline / Special Requirements (e.g., custom seal, laser branding, 3.1 certs)
