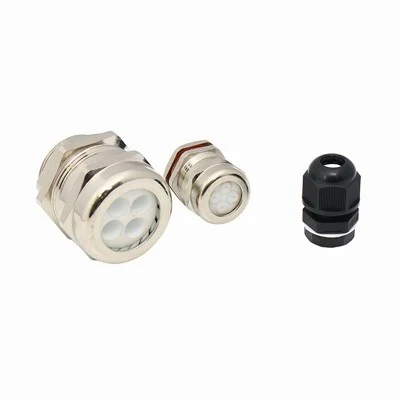

Stainless Steel Strain Relief Gland
The Stainless Steel Strain Relief Cable Gland (spiral cable gland) provides secure cable entry, environmental sealing, and mechanical bending protection for industrial enclosures and mobile equipment. Featuring an integrated helical spring guard, it evenly distributes bending stress to prevent sharp cable kinks and core fatigue under continuous motion or vibration. Machined from solid AISI 304 or 316L stainless steel, this gland withstands aggressive washdowns, saltwater environments, and chemical exposure.
Product Overview
The Stainless Steel Strain Relief Cable Gland (spiral cable gland) provides secure cable entry, environmental sealing, and mechanical bending protection for industrial enclosures and mobile equipment. Featuring an integrated helical spring guard, it evenly distributes bending stress to prevent sharp cable kinks and core fatigue under continuous motion or vibration. Machined from solid AISI 304 or 316L stainless steel, this gland withstands aggressive washdowns, saltwater environments, and chemical exposure.
Key Features
Material Grade Options: Solid-machined from AISI 304 (EN 1.4301) for standard industrial corrosion resistance or AISI 316L (EN 1.4404) for marine and chemical processing applications.
Helical Spring Guard: Extended stainless steel spiral protects flexible cables from over-bending and mechanical wear at the enclosure entry point.
IP68 / IP69K Sealing: Internal NBR/EPDM multi-layer insert and O-ring deliver dust-tight and high-pressure liquid immersion protection up to 10 bar.
High Pull-Out Resistance: Internal polyamide or metal clamping claw grips the cable jacket securely, offering high tensile strain relief without conductor crushing.
Technical Specifications
|
Parameter |
Specification |
|
Thread Standards |
Metric (M12 to M63), PG (PG7 to PG48), NPT (3/8" to 1-1/2"), G (PF) |
|
Material Composition |
AISI 304 / AISI 316L Stainless Steel |
|
Sealing Insert |
NBR (Standard: -40°C to +100°C) / FKM (High Temp: -20°C to +150°C) |
|
Ingress Protection |
IP68 (5 bar, 30 min) / IP69K (DIN EN 60529) |
|
Cable Clamping Range |
3.0 mm to 44.0 mm (Model dependent) |
|
Regulatory Compliance |
RoHS, REACH, CE, EN 62444 |
Product Options
Alloy Selection: AISI 304 for general factory automation; AISI 316L for offshore platforms, marine decks, and food-processing washdown zones.
Thread Variations: Comprehensive stock and custom production in Metric, PG, NPT, and G thread forms.
Seal Compounds: Standard NBR or high-temperature FKM/Viton elastomer inserts.
Accessory Bundles: Supplied with matching stainless steel locknuts and sealing washers.
Applications
Industrial Machinery & Robotics: Dynamic moving equipment requiring continuous cable bending protection.
Marine & Offshore Installations: Shipboard control units, salt-spray exposed junction boxes, and coastal infrastructure.
Food & Pharmaceutical Equipment: Washdown processing skids exposed to caustic cleaning agents.
Renewable Energy Systems: Outdoor solar tracker junction boxes and wind turbine nacelle enclosures.
OEM & ODM Customization
Thread Customization: Non-standard thread lengths, special pitch tolerances, or custom imperial dimensions machined per drawing.
Body Modifications: Extended body lengths, alternative wrench flat dimensions, or integrated earth-tag bonding lugs.
Traceability & Marking: Laser etching of customer part numbers, batch codes, or corporate logos directly onto the hex body.
Production Capability: In-house multi-axis CNC turning and automated thread rolling maintaining critical tolerances within ±0.01 mm, backed by full mill test report traceability.
Quality Control
Dimensional Verification: 100% optical and air-gauge screening on internal bores and thread pitch diameters.
Thread Gauging: Routine Go/No-Go plug and ring gauge testing to ensure interference-free panel assembly.
Seal Integrity Testing: Pneumatic pressure testing and hydrostatic immersion verification confirming IP68 compliance under mechanical load.
Material Spectrometry: Incoming raw bar stock verified via spectrometer analysis for exact chemical composition (AISI 304/316L).
Documentation Support: EN 10204 3.1 Material Test Certificates and Inspection Reports available on request.
Frequently Asked Questions
Q: What is the primary difference between AISI 304 and AISI 316L for cable glands?
A: AISI 304 suits general industrial environments. AISI 316L contains molybdenum for superior resistance to chlorides, marine salt spray, and aggressive chemical washdowns.
Q: How do I match the correct thread size to my enclosure?
A: Verify your panel knockout or tapped hole against our thread designation chart (e.g., M20x1.5 or NPT 1/2). Metric and PG use parallel threads, while NPT uses tapered threads.
Q: Can these glands accommodate various cable outer diameters?
A: Each model covers a specific clamping span (e.g., 6 mm to 12 mm). Selecting a cable outside this range invalidates the IP68 seal and strain relief rating.
Q: Are locknuts supplied with the glands?
A: Standard packaging includes the gland body, clamping insert, seal, and washer. Matching stainless steel locknuts can be included as an assembled set upon request.
Q: What is the minimum order quantity (MOQ) for custom threads?
A: Standard catalog items have no strict MOQ. Custom thread specifications or specialized body dimensions typically require a minimum batch of 500 to 1,000 pieces.
Q: What is the standard production and shipping lead time?
A: Standard stocked items ship within 3 to 5 business days. Custom production orders require 15 to 25 business days depending on volume and material availability.
Request a Quote
Submit your operational parameters for a formal commercial quotation:
Part Number / Thread Spec: (e.g., M20x1.5 Spiral Strain Relief Gland)
Material Grade: (AISI 304 or AISI 316L)
Quantity: (Batch size or annual forecast)
Cable Outer Diameter: (Min/Max mm)
Documentation Needs: (Standard CoC or EN 10204 3.1 certificates)
