Stainless Steel Anti-Bend Gland
The Stainless Steel Anti-Bend Gland (also designated as a strain relief cable connector with an integrated spiral guard) is engineered for dynamic machinery, high-vibration control cabinets, and corrosive outdoor installations. Designed to distribute bending stress uniformly and prevent sharp cable radii at the entry point, it protects power and control lines against core fatigue. Machined from solid stainless steel bar stock, this component delivers high mechanical retention and long-term sealing stability in demanding industrial environments.

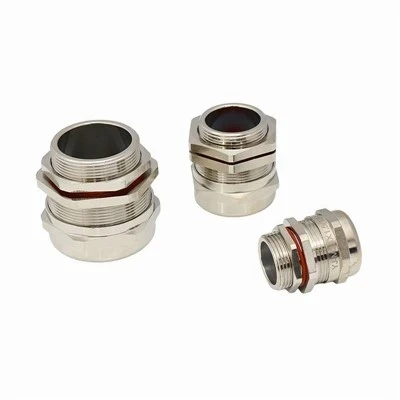

Stainless Steel Anti-Bend Cable Gland
The Stainless Steel Anti-Bend Gland (also designated as a strain relief cable connector with an integrated spiral guard) is engineered for dynamic machinery, high-vibration control cabinets, and corrosive outdoor installations. Designed to distribute bending stress uniformly and prevent sharp cable radii at the entry point, it protects power and control lines against core fatigue. Machined from solid stainless steel bar stock, this component delivers high mechanical retention and long-term sealing stability in demanding industrial environments.
Key Features
Solid Machined Body: Fabricated from solid AISI 304 or AISI 316 stainless steel bar stock, offering high resistance to chemical agents, saline atmospheres, and mechanical impact.
Spiral Spring Guard: Flexible stainless steel tail spring prevents over-bending and kinking, distributing mechanical loads evenly across continuous flexing cycles.
IP68 Ingress Protection: Precision-molded NBR/EPDM sealing insert and O-ring achieve an IP68 rating, ensuring dust-tight and submersible performance up to 5 bar.
Positive Strain Relief Clamping: Internal clamping claw secures the cable jacket firmly, preventing pull-out or slippage under heavy axial tension.
Technical Specifications
|
Parameter |
Specification Details |
|
Thread Standards |
Metric (EN 60423), PG (DIN 40430), NPT (ANSI B1.20.1), and G (PF) |
|
Thread Size Range |
Metric: M12 to M63; PG: PG7 to PG48; NPT: 1/4" to 2" |
|
Cable Clamping Range |
3.0 mm to 44.0 mm (model-dependent) |
|
Material Grades |
AISI 304 (Standard) / AISI 316 / AISI 316L (Marine Grade) |
|
Working Temperature |
Static: -40°C to +100°C (short-term to +120°C); Dynamic: -20°C to +80°C |
|
Ingress Protection |
IP68 (EN 60529 / Up to 5 bar) |
|
Regulatory Compliance |
CE, RoHS, REACH |
Product Options
Thread Variant: Metric, PG, NPT, and G thread profiles available to match international enclosure knockout designs.
Seal Compound: NBR (general industry), EPDM (outdoor weathering and ozone resistance), or Viton (high temperature and chemical resistance).
Internal Configuration: Single-hole standard inserts or custom multi-hole designs for harnessing multiple lines.
Surface Finish: Standard industrial passivated finish or electro-polished for cleanroom and pharmaceutical facilities.
Applications
Robotics & Automation: Dynamic sensor and control wiring on moving robotic arms and automated production lines.
Outdoor Enclosures: Telecommunication cabinets, traffic control boxes, and solar inverter stations exposed to severe weather.
Heavy Machinery: Machine tools, material handling systems, and industrial equipment subject to continuous vibration.
Marine & Offshore: Deck equipment, shipbuilding, and coastal installations requiring high salt-spray resistance.
OEM & ODM Customization
Custom Machining: Non-standard thread pitches, extended thread lengths, or unique body dimensions machined directly to technical drawings.
Alloy Options: Production in specialized stainless steel grades (AISI 316L, Duplex alloys) for extreme chemical processing environments.
Laser Marking: Custom part numbers, customer logos, or traceability codes laser-etched onto the body hex flats.
Packaging Configurations: Bulk industrial packaging or pre-assembled kitted sets (gland, locknut, and sealing washer) aligned with assembly workflows.
Quality Control
Dimensional Inspection: 100% profile checking using optical comparators and digital thread gauges to maintain tolerance compliance within ±0.02 mm.
Thread Verification: Routine go/no-go thread plug and ring gauge testing to ensure smooth assembly into panel holes or locknuts.
Pressure Testing: Sample immersion testing under 5 bar water pressure for 30 minutes verifying IP68 seal integrity.
Material Spectrometry: PMI (Positive Material Identification) spectrometer analysis verifying the chemical composition of raw stainless steel bar stock prior to production.
Traceability: Inspection sheets and Material Test Reports (MTR / EN 10204 3.1) provided upon request.
Frequently Asked Questions
Q: How do I select the correct thread size for my enclosure?
A: Match the thread standard (Metric, PG, or NPT) and nominal diameter of your panel knockout or tapped hole. Refer to our technical specifications table for exact thread major diameters and pitch dimensions.
Q: What cable diameter range does a specific gland accommodate?
A: Each gland model specifies a tight clamping window (e.g., M20x1.5 fits cable outer diameters from 6 mm to 12 mm). Using a cable outside this range compromises the IP68 seal and mechanical strain relief.
Q: What is the structural difference between AISI 304 and AISI 316 stainless steel?
A: AISI 304 provides reliable corrosion resistance for standard industrial environments. AISI 316 contains molybdenum, offering superior resistance against chlorides, marine atmospheres, and acidic chemical exposure.
Q: Are locknuts and sealing washers included as standard?
A: Locknuts and O-rings can be supplied as paired sets or bulk-packed according to your purchasing preference. Please specify inclusion when submitting an RFQ.
Q: What is the Minimum Order Quantity (MOQ) for custom threads?
A: Standard catalog stock items have no strict MOQ. Custom machined threads or non-standard dimensions typically require an MOQ starting at 500 pieces per size.
Q: What is the standard production lead time?
A: Standard stock items ship within 3 to 5 business days. Custom production orders require 15 to 25 business days depending on volume and specification complexity.
Request a Quote
To receive a formal commercial and technical proposal, please provide the following details:
Product Specification / Part Number: (e.g., Stainless Steel Anti-Bend Gland, M20x1.5)
Material Grade: (AISI 304 or AISI 316/316L)
Required Quantity: (Batch size and annual usage forecast)
Cable Outer Diameter: (Exact OD of the wire/cable)
Special Requirements: (Custom thread length, specific seal compound, or packaging instructions)
